Three Bus Network
Test Case Archive of Optimal Power Flow (OPF) Problems with Local Optima
WB3-Three Bus Network
- Introduction
3 bus network with 1 generator, 2 load bus and 2 transmission lines. Two local solutions exist within [0.95,1.05] voltage bounds.
- Case File
Network Diagram
Local solution data
Diagrams of Solutions in Rectangular Form

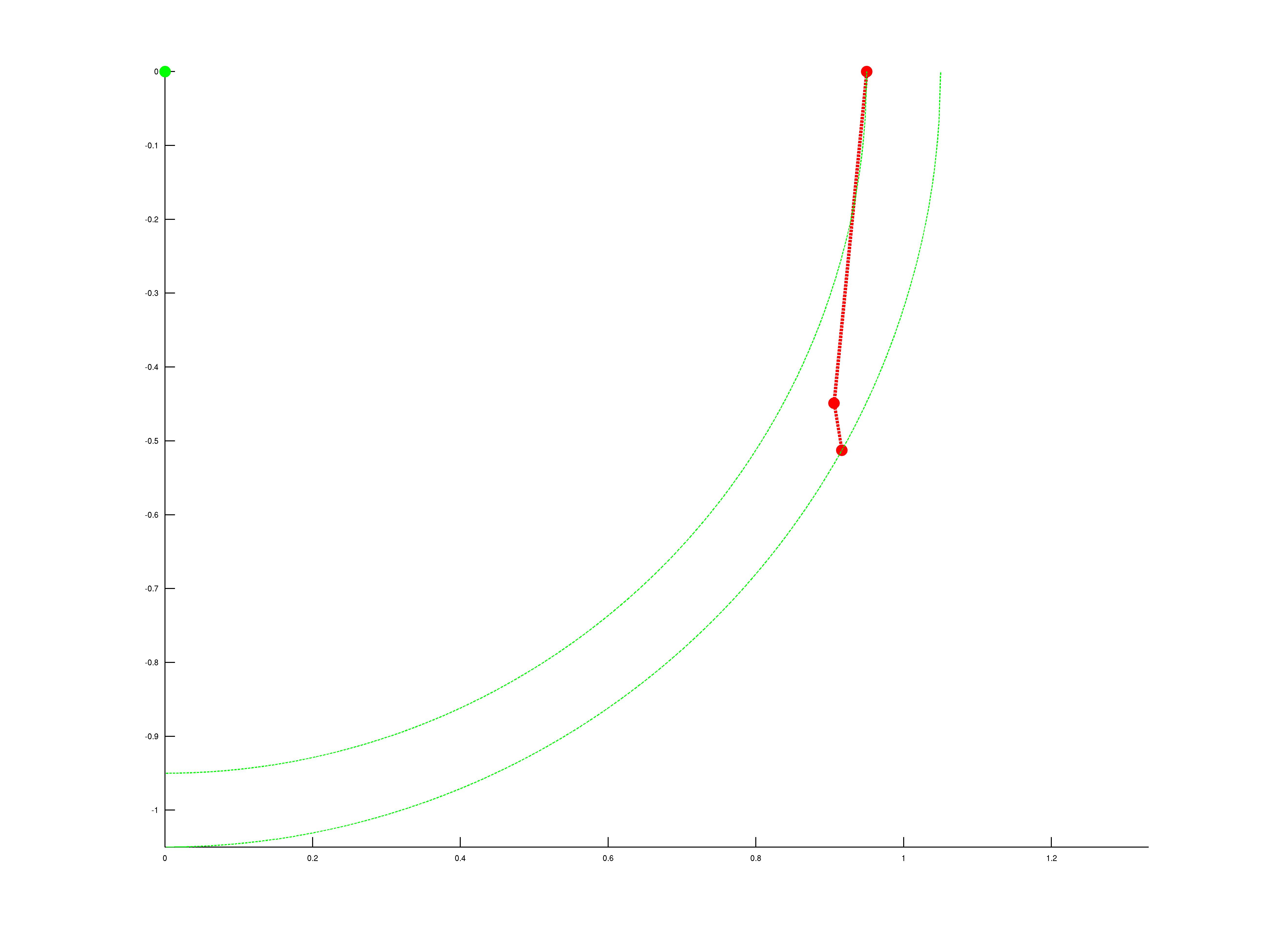

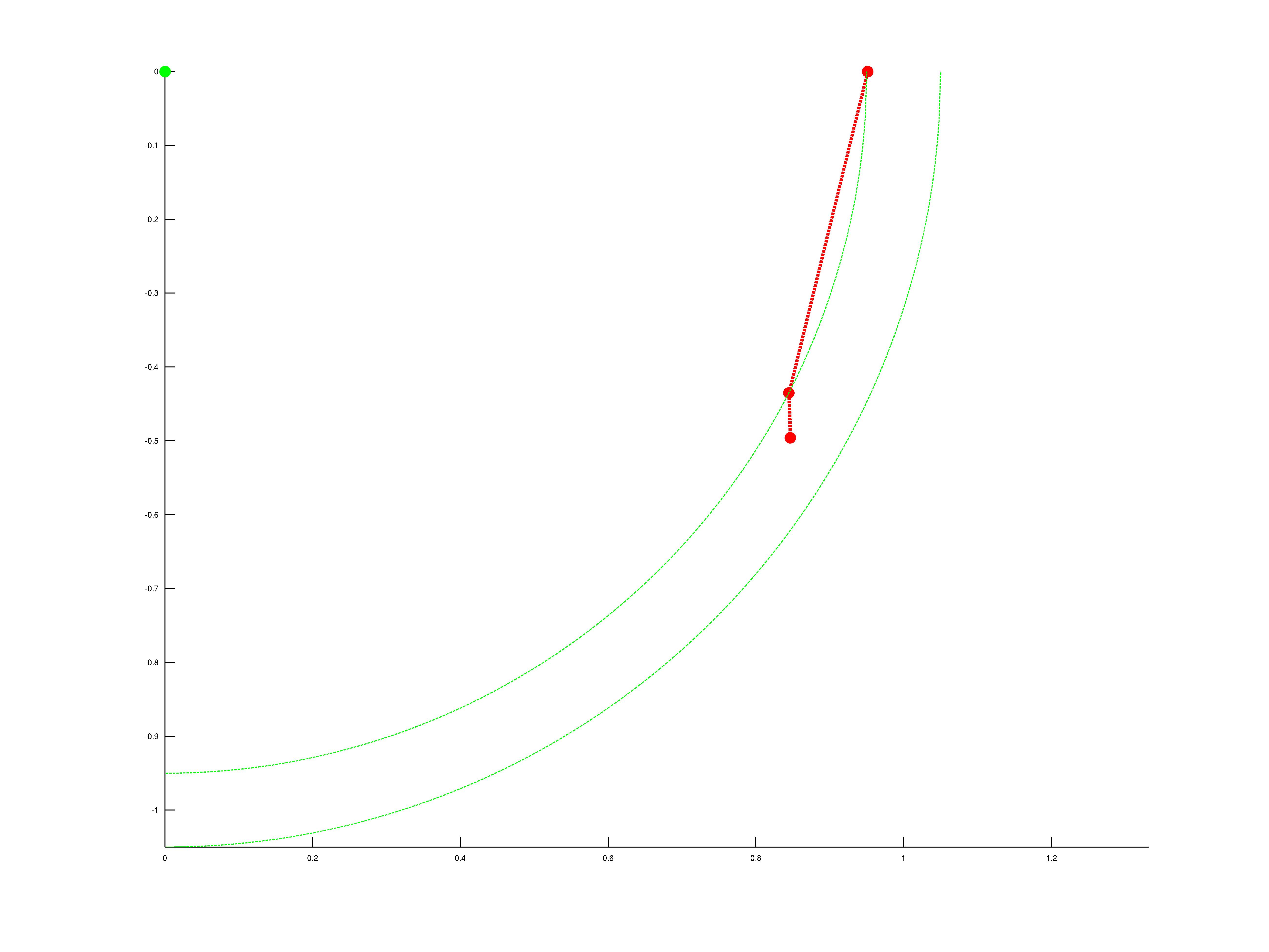

 Fig1. Local Solution 1 |  Fig2. Local Solution 2 |
Data for Local Solutions
